    FC APC To FC UPC Polarization Maintaining Jumpers 980nm 0.9mm Loose Tube Patch Cord

    Ask Lasest Price
    Brand Name : OEM
    Model Number : Patch cord
    Certification : CE, ISO14001, ISO9001, RoHS
    Price : Can be negotiate
    Payment Terms : L/C, T/T, Western Union,Paypal
    Supply Ability : 3500 pcs/ Month
    Delivery Time : 1-3 wks depends on quantity
    • Product Details
    • Company Profile

    FC APC To FC UPC Polarization Maintaining Jumpers 980nm 0.9mm Loose Tube Patch Cord


    FC APC to FC UPC PM Corning 980nm fiber 0.9mm loose tube patch cord 1 meters 300mW


    DESCRIPTION:


    FC/UPC-FC/APC PM Corning 980 fiber 0.9mm loose tube Slow axis aligned to key , patch cord 1 meters, 1064nm+-40nm ,300mW Min. ER: ≥22dB, IL: ≤ 0.3dB


    Polarization-maintaining jumpers (polarization-maintaining jumpers) have orthogonal "slow" and "fast" axes with different propagation constants.


    There is little coupling between polarization modes, so the light emitted on one axis will propagate on that axis. It has a high extinction ratio due to the very precise active alignment between the PM long axis and the connector key.


    ParameterUnitValue
    Connector Type-FC, SC,LC,MU
    Center Wavelengthnm1310/1550980/1060850780
    Max. Insertion Lossnm0.30.50.80.8
    Min. Extinction Ratio at 23℃dB23232222
    Min. Return lossUPC TypedB50
    APC TypedB60
    Fiber Type-PM Panda fiber
    Axis Alignment-Fast axis working

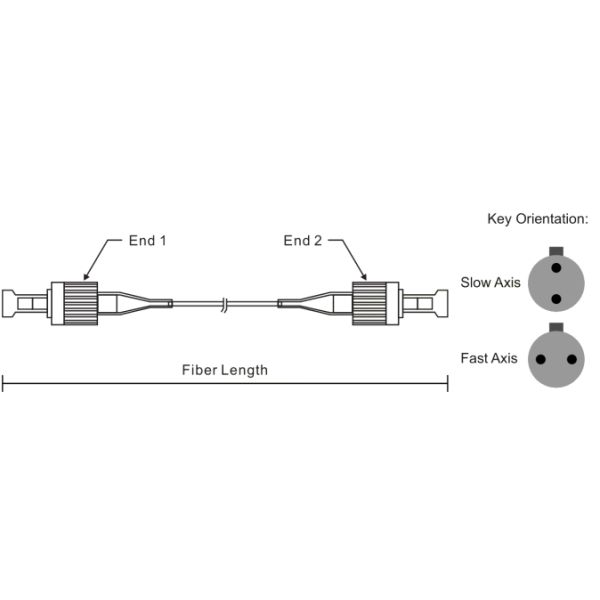

    Key Orientation-Slow Axis
    Tolerance for Axis Alignmentdeg±3
    Operating Temperature-20~+70
    Storage Temperature-40~+85


    Ordering Information

    1111-Operating Wavelength:1550=1550nm,1310=1310nm,......,0850=850nm
    2-Key Orientation:S=Slow axis, F=Fast axis
    333-Fiber Type:001=PM1550, 002=PM1310, 003=PM980, 004=Hi1060, 008=SMF-28E
    4-Connector for Input:0=FC/UPC,1=FC/APC,2=SC/UPC,3=SC/APC,4=LC/UPC,5=LC/APC, N=None
    5-Connector for Output:0=FC/UPC,1=FC/APC,2=SC/UPC,3=SC/APC,4=LC/UPC,5=LC/APC, N=None
    6-Pigtail Type:0=250μm bare fiber, 1=900μm loose tube, 2=2.0mm loose tube, 3=3.0mm loose tube
    77-Fiber Length:00=0.8m, 01=1m, 20=20m
