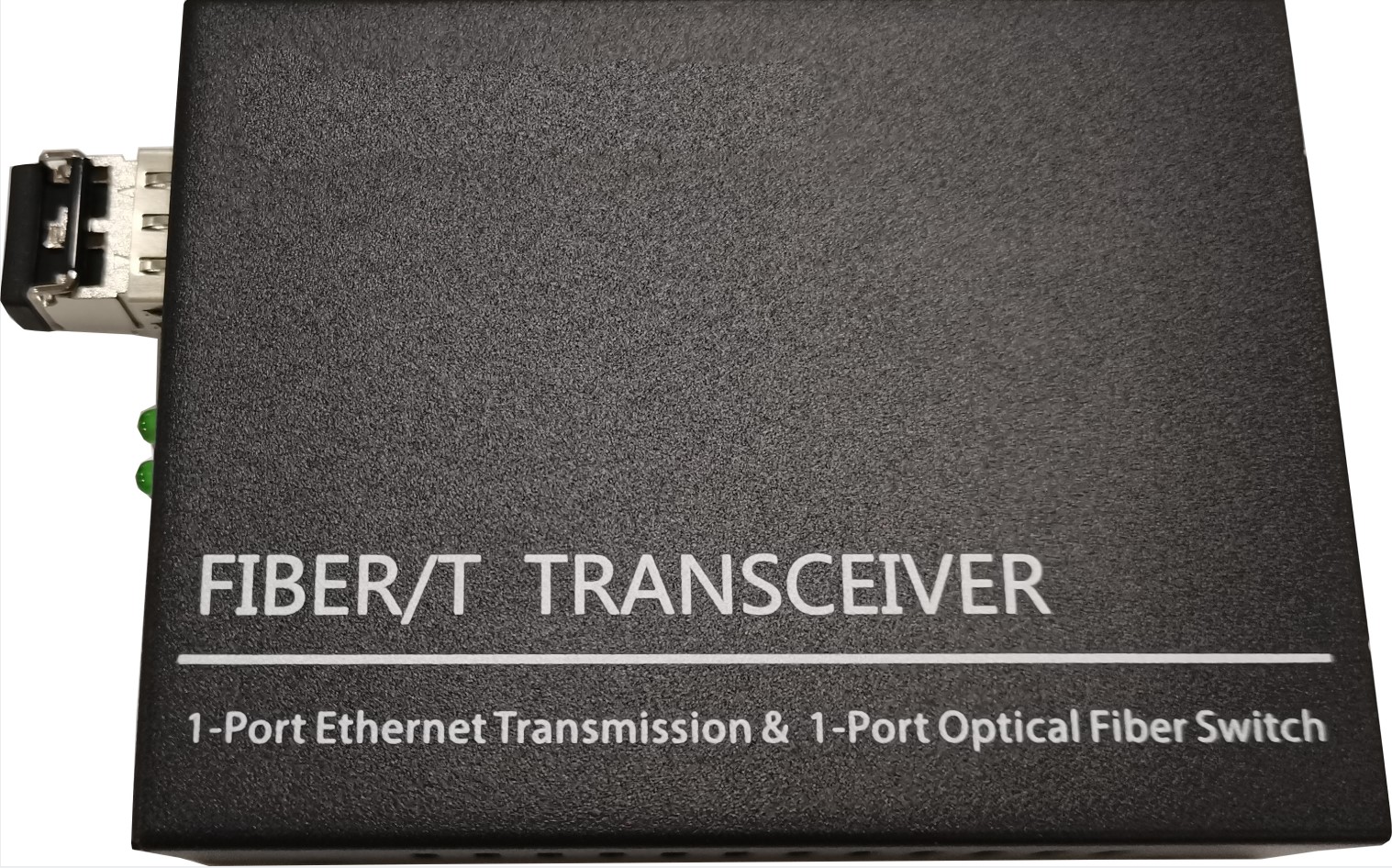

    Ethernet Optic Media Converter 10/100/1000M Singlemode Duplex SFP Fiber

    Ask Lasest Price
    Brand Name : DF
    Model Number : DF-MC-1000M-MM-LC
    Certification : CE, RoHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal, MoneyGram
    Supply Ability : 100000pcs a month
    Delivery Time : 3-7 working days
    • Product Details
    • Company Profile

    Ethernet Optic Media Converter 10/100/1000M Singlemode Duplex SFP Fiber

    10/100/1000M Singlemode Duplex SFP Fiber Optic Media Converter In Ethernet

    10/100/1000M Multi-mode Media converter Description

    10/100/1000M media converter has a SFP port and a RJ45 port. Also, it is Multi-mode, 1310nm, up to 2KM. The miniature fiber optic transceivers use aluminum alloy shell, so the overall heat dissipation is better, the appearance is even more beautiful, delicate


    10/100M mini size Media converter Parameter

    Prodcut NO.DF-MC-1000M-MM-LC
    Size62.3*22.3*22mm
    MaterialAluminum
    ColorBlack or Metal
    Standard

    IEEE802.3 10Base-T

    IEEE802.3u 100Base-TX/FX

    IEEE802.3ab 1000Base-T

    IEEE802.3z 1000Base-SX/LX

    IEEE802.3x Flow control

    IEEE802.1q VLAN

    IEEE802.1p QoS

    IEEE802.1d Spanning Tree

    Copper Port

    ConnectorRJ45

    Data Rate

    10/100/1000M

    Distance

    0~100M

    UTP Type

    UTP-5E or higher level

    Fiber Port

    Connector

    LC(SFP)

    Data Rate

    1000Mbps

    Optical wavelength

    850nm/1310nm

    Distance

    2KM

    Performance

    Processing Type

    Store and Forward

    MAC Table Size

    2K

    Buffer Space

    1Mbit

    Maximum Packet Length

    9K bytes

    Time Delay

    <20μs

    Power

    Input Voltage

    AC100V~240V 50/60Hz

    Connector

    DC Socket

    Working Voltage

    5VDC

    Power Consumption

    0.75W~3W

    Environment

    Storage Temperature

    --40 ˚C ~ +70 ˚C

    Operating Temperature

    -10 ˚C ~ +55 ˚C

    Relative Humidity

    5-95% ( no condensation)


    Note:

    1.Power supply provided by user or order additionally.

    2.SC connector as default, FC/ST/SFP slot as request.


    10/100/1000M Multi-mode Media converter Application

    • FTTx
    • Security
    • Network

    10/100/1000M Multi-mode Media converter Features

    • support 10 / 100Base-TX and 100Base-FX conversion between;
    • 1 full duplex 155Mbps optical port, a 10 / 100M adaptive electrical port;
    • 10 / 100M rate adaptive, MDI / MDI-X adaptive, full / half duplex adaptive;
    • All optical / electrical ports have connection / activity status indicator to facilitate the installation, commissioning and maintenance of the equipment;
    • support IEEE802.1 spanning tree (Spanning Tree) protocol, so that the network is more simple;
    • support QoS, to ensure the efficient operation of the network;
    • support broadcast storm suppression;
    • support custom 5 ~ 16VDC wide voltage input;
    • support up to 1552bytes long packet transmission;
    • Full power at work only 1W;
    • support low latency transmission, but also with isolation protection;
    • imple to use, plug and play, without any settings;
    • use low-power chip, low heat, long time to stabilize the work;
    • small: small size, suitable for installation in a variety of small space;
    • light: the body only 0.06kg, for long-distance transport is more economical;
    • Ingenuity: the use of aluminum alloy shell, the overall heat better, more beautiful, refined
