    2 - 12 Fibers Low Friction Air Blown Cable Microduct G657A1 G657A2 Groove Design

    2/4/6/8/12 Fibers Low Friction Microduct Air Blown Cable 12 Core G657A1 G657A2 Groove Design Air Blowing Fiber Unit


    Description:
    Nano Cable is a very small diameter cable for air blown installation in to micro duct The fibers are coated with a soft resin layer as a cushion to provide protection to the fiber A patented outer jacket with groove design give s low
    friction and best blowing performance to the installation.

    The Nano Cable is the product that with small diameter, lightweight, highly flexibility and proper stiffness, and it can be blown into the microduct of 5.0/3.5mm. The fibres are coated with a soft acrylate resin which provides excellent dimensional and thermal stability to cushion the fibres, in addition, the resin can be easily stripped in connecting the fibres. The outer sheath is a thermoplastic that is of low friction. The surface of the sheath is designed with special grooves, compared to the surface of the traditional optical fibre cable, it provides not only the high level of mechanical protection, but also the perfect blowing performance.
    Feature:
    >> Fiber amount:
    2,4,6,8 and 12 fibers
    >> Fiber type: G.G652D, G.657A1 and G.657A2
    >> Small diameter, stable structure, good mechanical and temperature performance
    >> Designed with special grooves to advance blowing distance..
    >> Frees up capital to expand network and client base
    >> Network design flexibility
    >>
    Designed with no gel, easy stripping and handling.
    >> Complete accessories, less manpower, lower installation time.


    Standards:
    >> Unless otherwise specified in this specification, all requirements shall be mainly in accordance with the following standard specifications.
    >> Optical fiber: ITU-T G.651,G.652,G.655,G.657 IEC 60793-2-10,IEC 60793-2-50
    >> Optical Cable: IEC 60794-1-2,IEC 60794-5

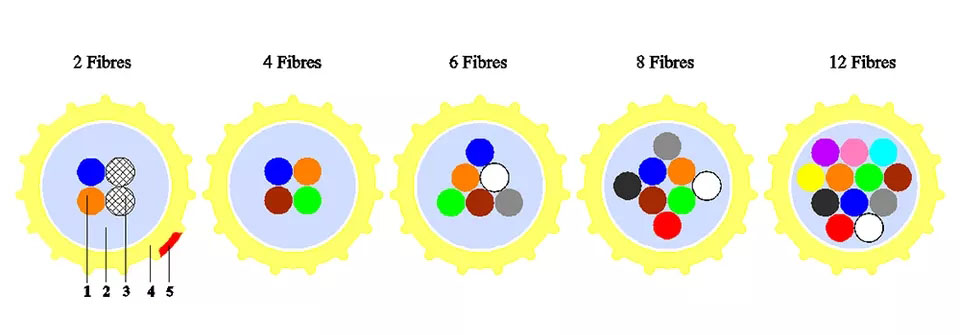

    Specification:

    Fibre Count2 Fibres4 Fibres6 Fibres8 Fibres12 Fibres
    Outer Diameter (mm)1.15±0.051.15±0.051.35±0.051.50±0.051.65±0.05
    Weight (g/m)111.31.82.2
    Min Bend radius (mm)5050608080
    TemperatureStorage: -30ºC ~ +70ºC
    Operation: -30ºC ~ +70ºC
    Installation: -5ºC ~ +50ºC
    Cable service life (estimate value)25 years
    Note: It is recommended that the structure of 2 fibres unit consist of 2 filled fibres, for it is proved that 2 fibres unit with 2 filled fibres is better than the one with zero or one filled fibre in the blowing performance and the fibre stripping-ability.

    Fibre Count2 Fibres4 Fibres6 Fibres8 Fibres12 Fibres
    Test equipmentPLUMETTAZ:UM25, ERICSSON:F, CATWAY:FBT-1.1
    Standard duct5.0/3.5 mm
    Pressure7bar / 10bar
    Typical blowing distance500m / 1000 m500m / 1000m500m / 1000m500m / 1000m500m / 800m
    Typical blowing time10 min/18 min10 min18 min12 min/ 18 min13min/18 min15 min /20 min

    TestStandardParametersTest Results
    TensionEN 18700 A1/501Load is 1×WAdditional attenuation ≤0.05dB after test
    IEC 60794-1-2-E1
    BendIEC 60794-1-2--E11ADiam 40mm×3turns 5 cycles at 20ºCAdditional attenuation ≤0.05dB,after test
    CrushIEC 60794-1-2-E3100 N, 60sAdditional attenuation ≤0.05dB,after test
    All optical testing proceeded at 1550 nm

    Packing information:
    Standard delivery lengths are: 1000m, 2000m, 4000m, with a tolerance of 0~+5%.

    Fibre CountLength(m)Pan Size Φ×H(mm)Weight (Gross) (kg)
    2~4 Fibres2000 mφ510 × 2008
    4000 mφ510 × 20010
    6000mφ510 × 30013
    6 Fibres2000 mφ510 × 2009
    4000 mφ510 × 30012
    8 Fibres2000 mφ510 × 2009
    4000 mφ510 × 30014
    12 Fibres1000 mφ510 × 2008
    2000 mφ510 × 20010
    3000mφ510 × 30014
    4000 mφ510 × 30015

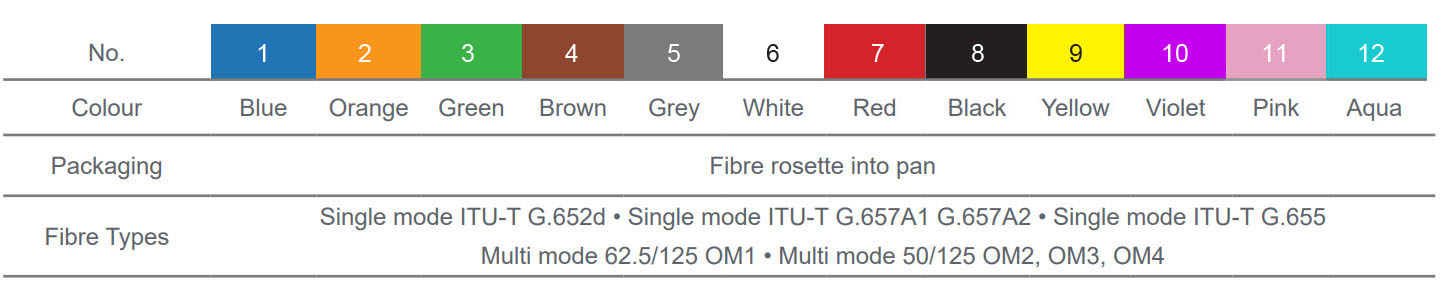

    Optical fiber color:
