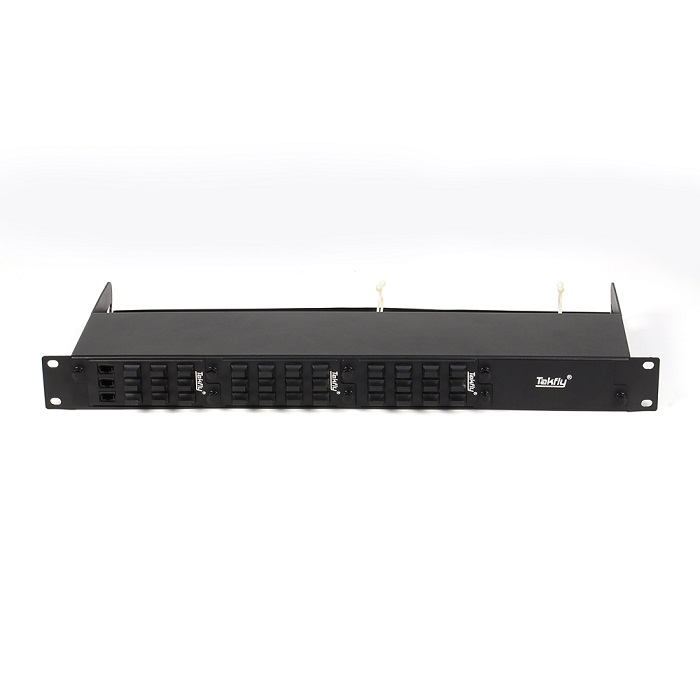

New Design HD 1U 19 Inch 1156 Cores MPO Fiber Optic Patch Panel for Data Center

Takfly's New Design High Density 1U 19 Inch 96 to 1156 Cores MPO MTP Fiber Optic Patch Panel is designed for large data center room: MDF application, IDF wiring area optical fiber backbone connection, the fiber distribution unit management, and other the high-density integrated optical fiber environment, etc. It is installed in 19 inch racks and cabinets.

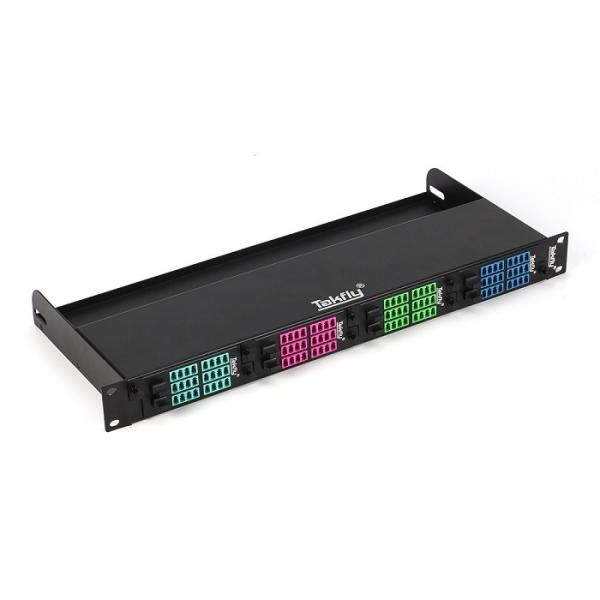

This New Design High Density 1U 19 Inch 96 to 1156 Cores MPO MTP Fiber Optic Patch Panel could load 4 Pre-connected cassette module, and the maximum capacity can be managed is 1152 cores for MPO interface, or 96 cores for LC interface. Each independent pre-terminated module box is placed in the optical fiber distribution frame, to complete the full set patch panel

Takfly's New Design 1U 19 Inch MPO MTP Patch Panel aims to help Customers/Users to save more space in the cumputer room. Due to it's compact design and Aluminum material, it's quite economic and competitive, as it could help you save shipping cost.

New design MPO MTP Fiber Optic Patch Panel Specification:

Different Solutions for New design MPO MTP Fiber Optic Patch Panel:

Solution 1:

Solution 2:

Solution 3:

New design MPO MTP Fiber Optic Patch Panel Application:

• Optical fiber communication dense wiring system between buildings.
• Optical link interconnection in optical active equipment for LAN cabling.
• Telecommunication base station.
• Data center room of industrial area.
• Data center room of commercial building.
• CATV
• LAN
• WAN
• FTTX

New design MPO MTP Fiber Optic Patch Panel Features:

• Installed in 19 inch rack-mount and cabinet, application for cassette modules centralized management.
• 1U high-density size capacity 1152 fibers for MPO interface and 96 fibers for LC interface.
• Input port can be used on the front panel or back for option, and output port is on the front panel.
• Male or Female MPO/MTP connector are available. Connected and positioned by PIN and adaptor to achieve precise and high stable connection.
• Modular design, plug-in locking structure, the fiber has a clear line sequence identification, easy to test, install, remove and adjust the mating.
• New brand high quality aluminum alloy material, sturdy and durable, electrostatic coating surface after the Strict production process
• Thecassette module and patch panel are small in size, lightweight, impact-resistant, high-pressure, flame-retardant, corrosion-resistant, strong structure to protect the internal optical fiber, ultra-high sealing performance to facilitate dust-proof, innovative design for advanced network equipment.

New MPO MTP Fiber Optic Patch Panel Details:

How to order MPO/ MTP patch panel:

• Port count: 12/24/48/96/144/288 ports
• Connector type: MPO, E2000, LC, SC, FC, ST, etc.
• Patch panel type: fusion tray type, MPO cassette type.
• Size: 1U/ 2U,etc
• Load type: full set/ empty box

Why choose TAKFLY--Advantages as follows:
Professional manufacturer:

• With more than 21 years manufacturing experience in Fiber optic products;
• More than 450 assembly workers with 3 years experienced;
• More than 10 R&D Engineers;
• 16 Sets Germany imported Injection Machine and 16 Production Lines;
• More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, ect.
• OEM Brand is acceptable.
• Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia ,Global Soure Electronic Exhibition,etc.

Quality Control:

• Spot check the raw material incoming inspection before production;
• Fully check after every individual process finished;
• Fully check production half done;
• Fully check the finished products before packing;
• Spot check before shipping;

Delivery:

• Samples: 1-3 working days.
• Mass Production Order: 3-7 working days.
• Packaging: Plastic Bag, Carton and Pallet are available according to your request.

Price: If your QTY is big, the price could be negotiated.

I have been working in this field more than 6 years, I believe, I could give you very good service and professional answers!

If you’re interested in our products or have any doubt, why not send me inquiry at once?
